What Is a Biomass Power Plant?

A biomass power plant is a renewable energy facility that converts organic raw materials into electricity and heat.

These raw materials include wood, agricultural residues, and other biomass resources suitable for energy generation.

What Fuels Can a Biomass Power Plant Use?

A biomass power plant can use wood and forestry residues, agricultural by-products, and selected organic waste streams. Fuel suitability depends on the conversion technology and the properties of the feedstock.

Biomass Fuel Requirements for Power Generation

What Are the Main Types of Biomass Power Plants?

Four technology configurations commonly considered for biomass power generation are stoker-boiler combustion, fluidized bed combustion, biomass gasification, and anaerobic digestion. Stoker boilers and fluidized bed systems are both combustion technologies. Gasification and anaerobic digestion use different conversion processes.

Direct Combustion (Stoker Boiler)

A stoker boiler burns solid biomass in a combustion chamber, typically on a grate. The heat produces steam, which can drive a turbine connected to a generator.

Stoker boilers are used in conventional biomass power plants. Their design depends on fuel properties, plant capacity, and the required steam conditions.

Fluidized Bed Combustion (FBC)

Fluidized bed combustion burns biomass in a bed of hot material, typically sand, suspended by an upward flow of air.

The bed promotes fuel mixing and heat transfer. Depending on the design, FBC systems can handle different solid biomass fuels. They are commonly considered for large-scale power generation.

Like stoker boilers, FBC systems can produce steam for a turbine-generator. The main difference is the combustion method and equipment configuration.

Biomass Gasification

Biomass gasification converts solid biomass into combustible producer gas by heating it under controlled conditions with a limited supply of oxygen or air.

The resulting gas can be cleaned and used in a compatible gas engine generator to produce electricity. The gasifier and gas-cleaning system must match the feedstock and the requirements of the power-generation equipment.

Anaerobic Digestion (Biogas)

Anaerobic digestion uses microorganisms to break down suitable wet organic materials without oxygen. The process produces biogas containing methane and carbon dioxide.

After suitable treatment, the biogas can fuel an engine-generator to produce electricity. This technology is commonly considered for wet organic feedstocks such as livestock manure and certain biodegradable wastes.

How Does a Biomass Power Plant Work?

A biomass power plant generates electricity through different conversion processes. Direct combustion uses heat and steam, gasification uses combustible gas, and anaerobic digestion uses biogas produced from wet organic materials.

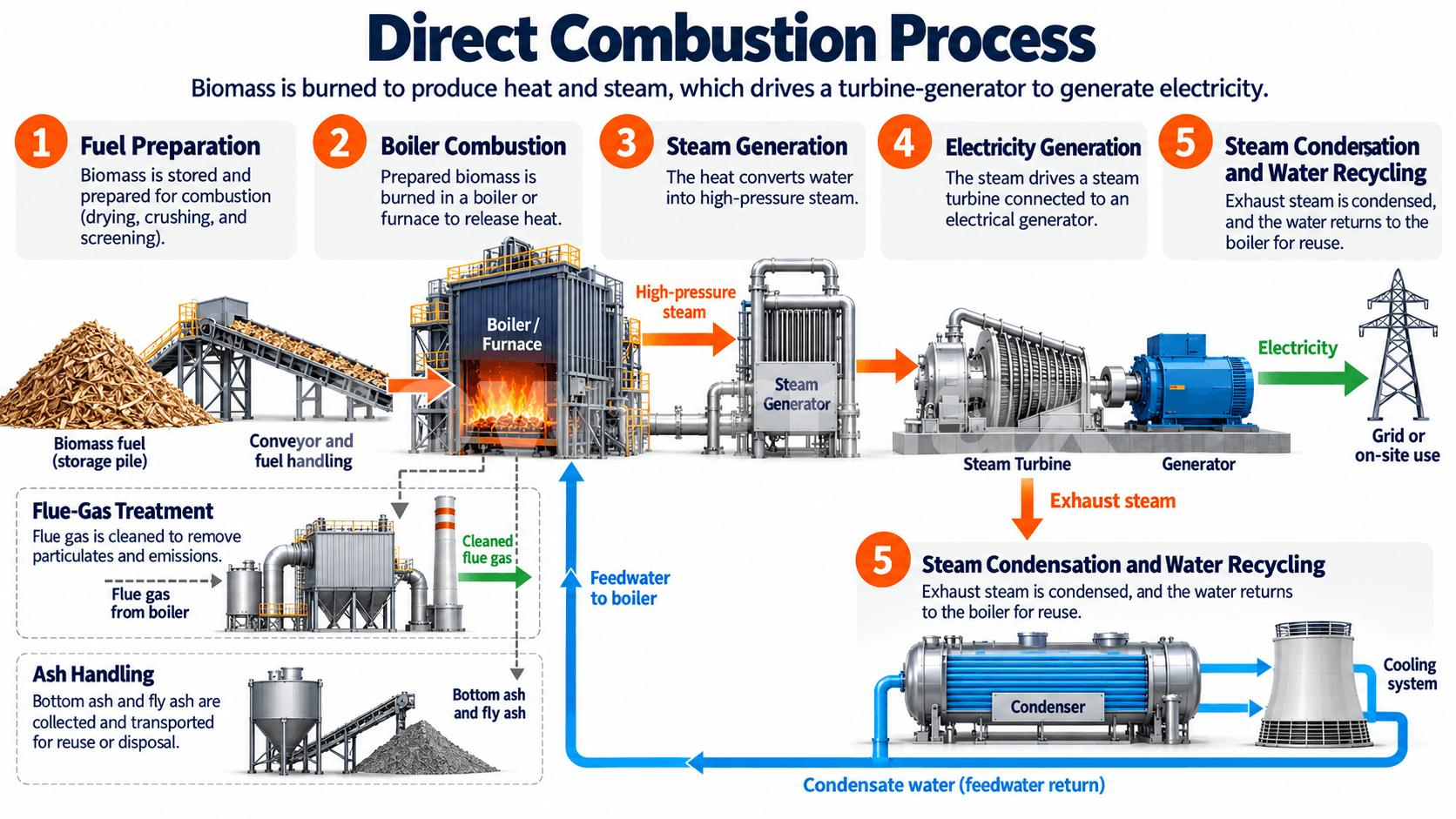

Direct Combustion Process

In a direct-combustion biomass power plant, biomass is burned to produce heat. The heat generates steam, which drives a turbine connected to an electrical generator.

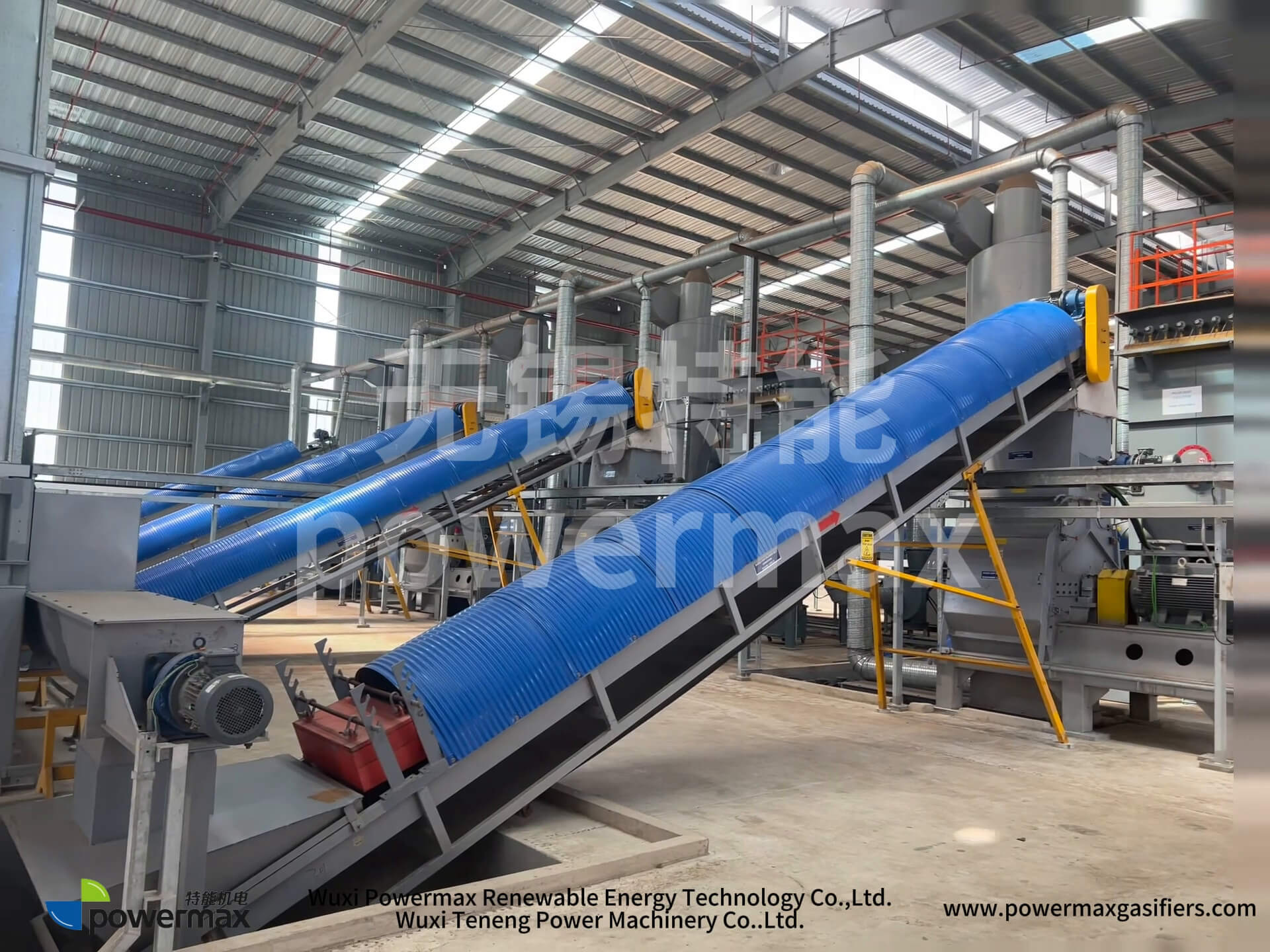

Fuel Preparation: Biomass is stored and prepared for combustion. Depending on the fuel, preparation may include drying, crushing, and screening.

Boiler Combustion: The prepared biomass is burned in a boiler or furnace to release heat.

Steam Generation: The heat converts water into high-pressure steam.

Electricity Generation: The steam drives a turbine connected to an electrical generator.

Steam Condensation and Water Recycling:Exhaust steam is condensed, and the water returns to the boiler for reuse.

The system also includes flue-gas treatment and ash handling. A direct-combustion biomass power plant diagram typically shows the fuel-handling system, boiler, steam turbine, generator, and condenser.

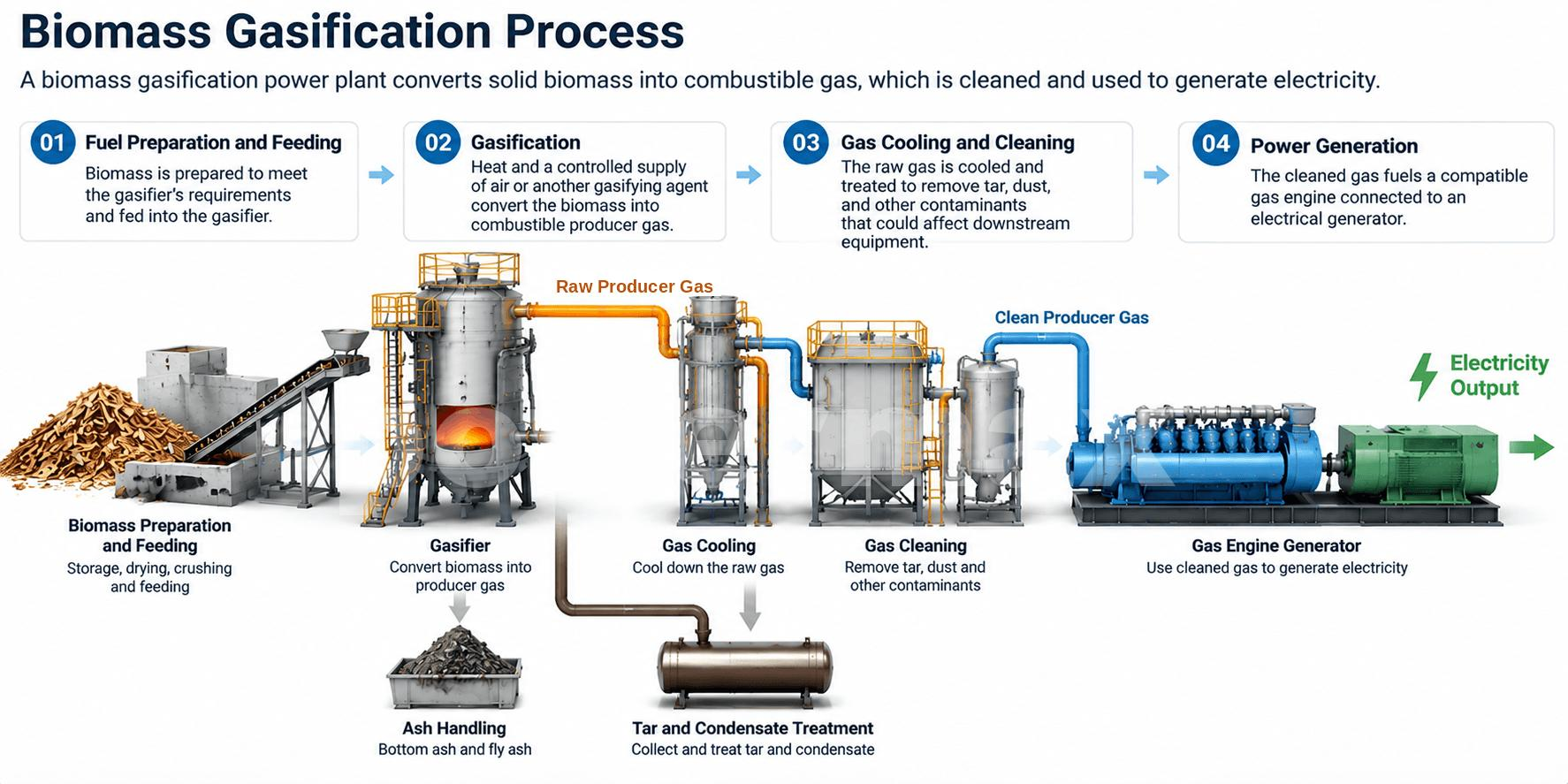

Biomass Gasification Process

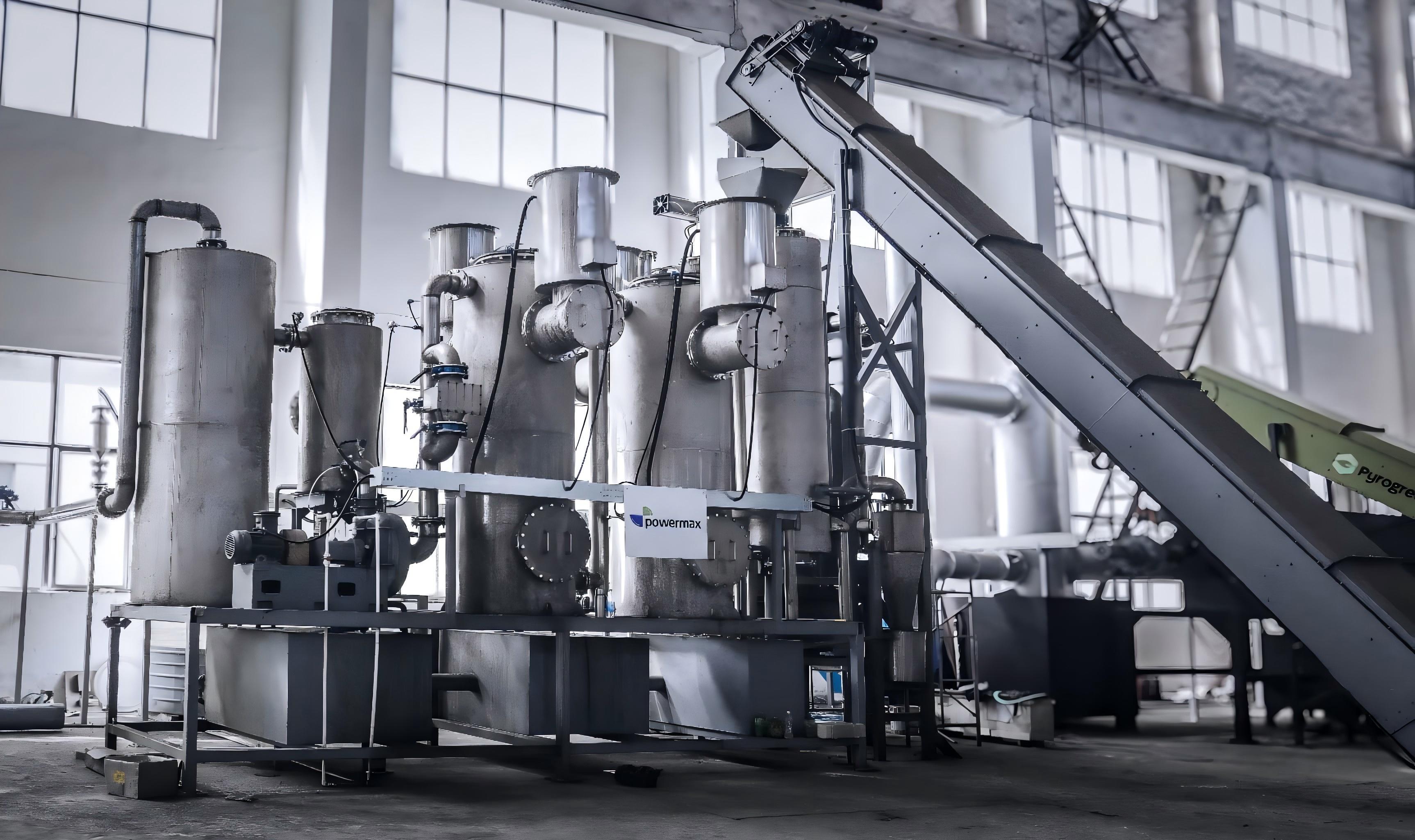

A biomass gasification power plant converts solid biomass into combustible gas, which is cleaned and used to generate electricity.

Fuel Preparation and Feeding: Biomass is prepared to meet the gasifier's requirements and fed into the gasifier.

Gasification: Heat and a controlled supply of air or another gasifying agent convert the biomass into combustible producer gas.

Gas Cooling and Cleaning: The raw gas is cooled and treated to remove tar, dust, and other contaminants that could affect downstream equipment.

Power Generation:The cleaned gas fuels a compatible gas engine connected to an electrical generator.

The gasifier, gas purification system, and gas engine generator work together as an integrated power generation system.

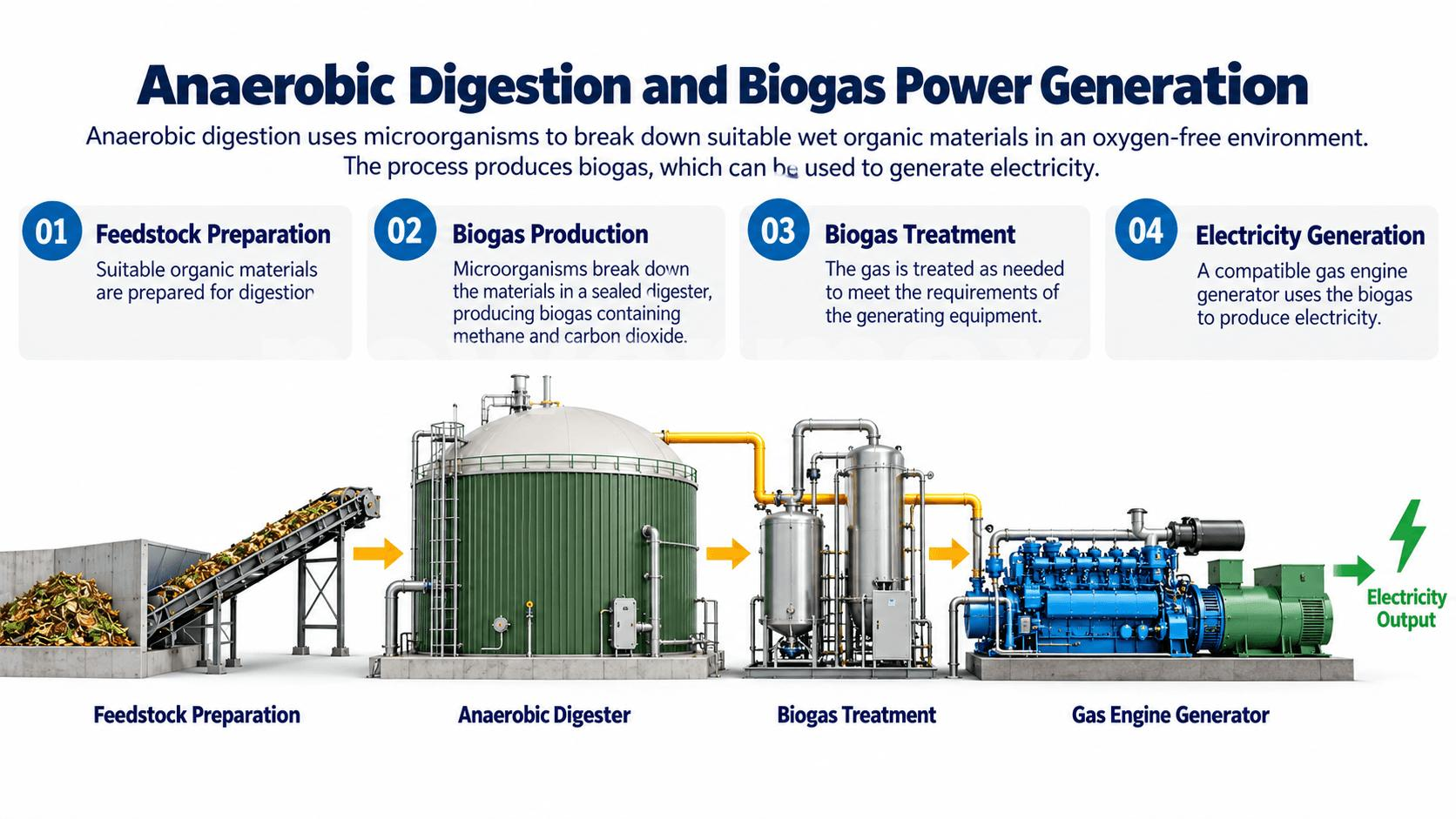

Anaerobic Digestion and Biogas Power Generation

Anaerobic digestion uses microorganisms to break down suitable wet organic materials in an oxygen-free environment. The process produces biogas, which can be used to generate electricity.

Feedstock Preparation:Suitable organic materials are prepared for digestion.

Biogas Production:Microorganisms break down the materials in a sealed digester, producing biogas containing methane and carbon dioxide.

Biogas Treatment:The gas is treated as needed to meet the requirements of the generating equipment.

Electricity Generation:A compatible gas engine generator uses the biogas to produce electricity.

Biomass Power Plant Applications

Biomass power plants supply electricity to the grid, industrial sites, and remote areas. Some systems also provide heat for industrial processes.

Grid-Connected Power Generation

A grid-connected biomass power plant supplies electricity to the public grid. It can also power nearby industrial facilities. Where local rules allow, surplus electricity can be sold to the grid. This option suits projects with a reliable biomass supply and sufficient power output.

Off-Grid and On-Site Power Generation

An off-grid biomass power plant supplies electricity without relying on the public grid. It can serve remote communities, farms, irrigation pumps, and industrial sites with limited grid access. Using local biomass can reduce reliance on diesel deliveries and turn agricultural or forestry residues into useful energy.

Factories can also generate their own electricity from suitable biomass residues. This can reduce their reliance on purchased electricity, depending on fuel costs and plant performance.

Combined Heat and Power (CHP)

A combined heat and power system generates electricity and recovers heat for industrial use. The recovered heat can support drying, steam production, and hot-water supply. Using both electricity and heat can improve energy utilization when the facility has a steady demand for both.

Key Benefits and Considerations of Biomass Power Generation

Biomass power generation offers several potential benefits, but project performance depends on sustainable fuel sourcing, feedstock quality, and reliable plant operation.

Reliable Baseload Power

Unlike weather-dependent energy sources such as wind and solar, a biomass power plant can provide controllable electricity when fuel is available and the system is operating reliably. Actual power availability depends on fuel supply, equipment configuration, and maintenance.

Carbon Cycle and Sustainability

Plants absorb carbon dioxide (CO₂) as they grow. When biomass is sourced sustainably and replenished, the carbon released during energy conversion can be balanced, in part, by carbon absorbed during regrowth. However, biomass power should not automatically be considered carbon-neutral. Its environmental benefits depend on sustainable resource management.

Waste-to-Energy Benefits

Using suitable agricultural residues, forestry by-products, and other organic waste streams can turn materials that might otherwise be discarded into useful energy. Depending on the technology, a biomass power plant can generate electricity and recover heat for industrial processes. Feedstock suitability must be assessed before selecting the conversion system.

Fuel Supply and Operating Considerations

A consistent supply of suitable biomass is essential for reliable operation and cost control. Seasonal availability, variations in moisture content and particle size, ash content, and transportation distance can affect plant performance and operating costs. Assessing local fuel resources and determining the required pretreatment can help reduce these risks.

Biomass Power Plant Cost: What Affects Project Investment?

Biomass power plant costs vary by technology, capacity, fuel, and equipment requirements. The table below compares four technologies, their main features, typical capacity ranges, and average capital expenditure (CAPEX).

Actual costs depend on equipment configuration, fuel preparation, installation, and site conditions.

What Other Costs Should You Consider?

Beyond the main equipment, a biomass power project also involves operating and maintenance costs. Use the table below to identify the main expenses.

Payback depends on total project costs and electricity output. If the plant also supplies useful heat, using that heat can add value when the facility has a suitable demand for it.

Real-World Biomass Power Plant Projects

These case studies show how Powermax addresses different power generation needs, from grid-connected electricity generation in Taiwan to factory self-generation in Malaysia and industrial and agricultural power supply in Myanmar.

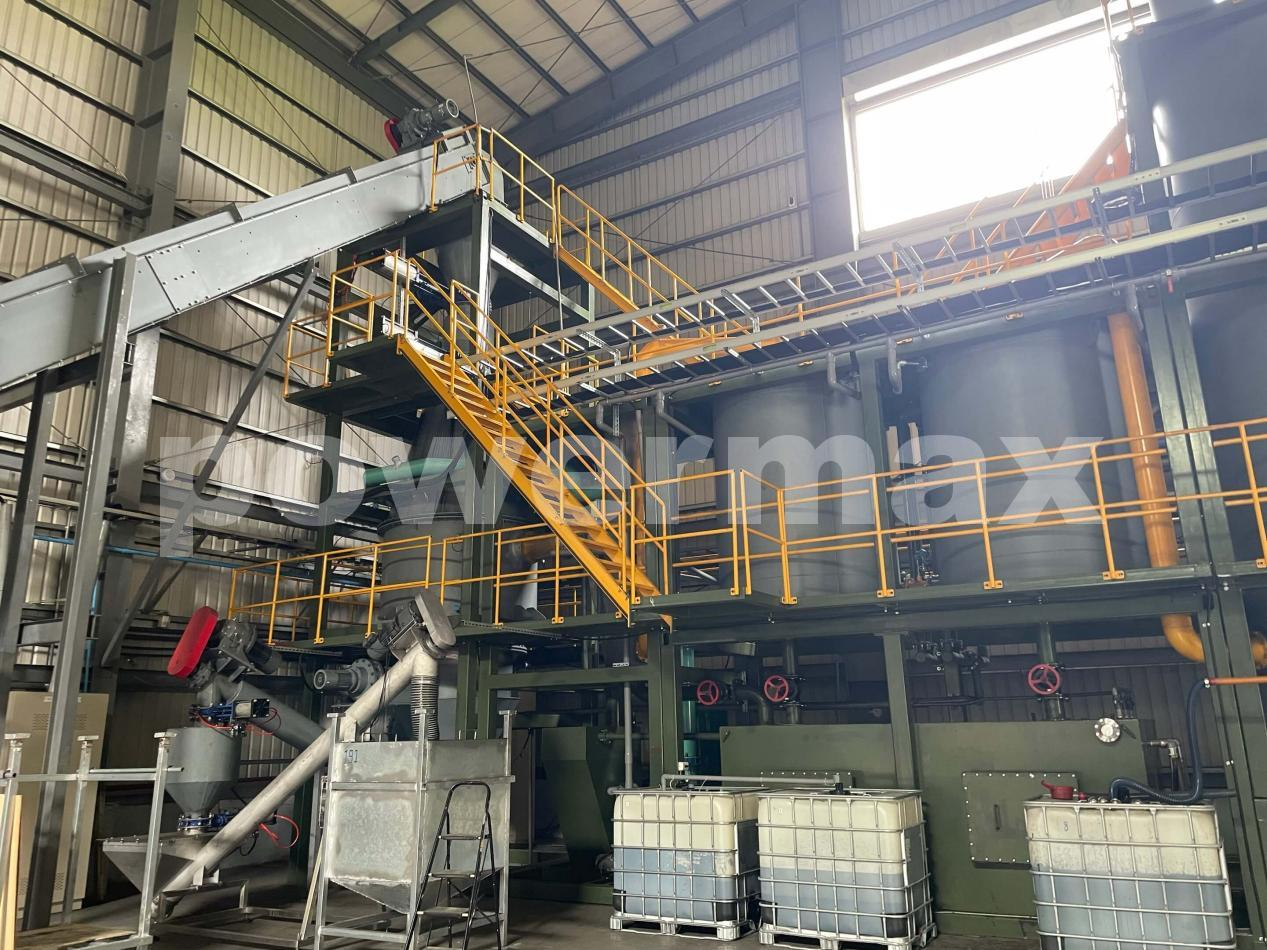

500 kW Wood Chip Gasification Project in Taiwan

Project Background

The Taiwan project uses wood chips for grid-connected biomass power generation.

Project Challenge

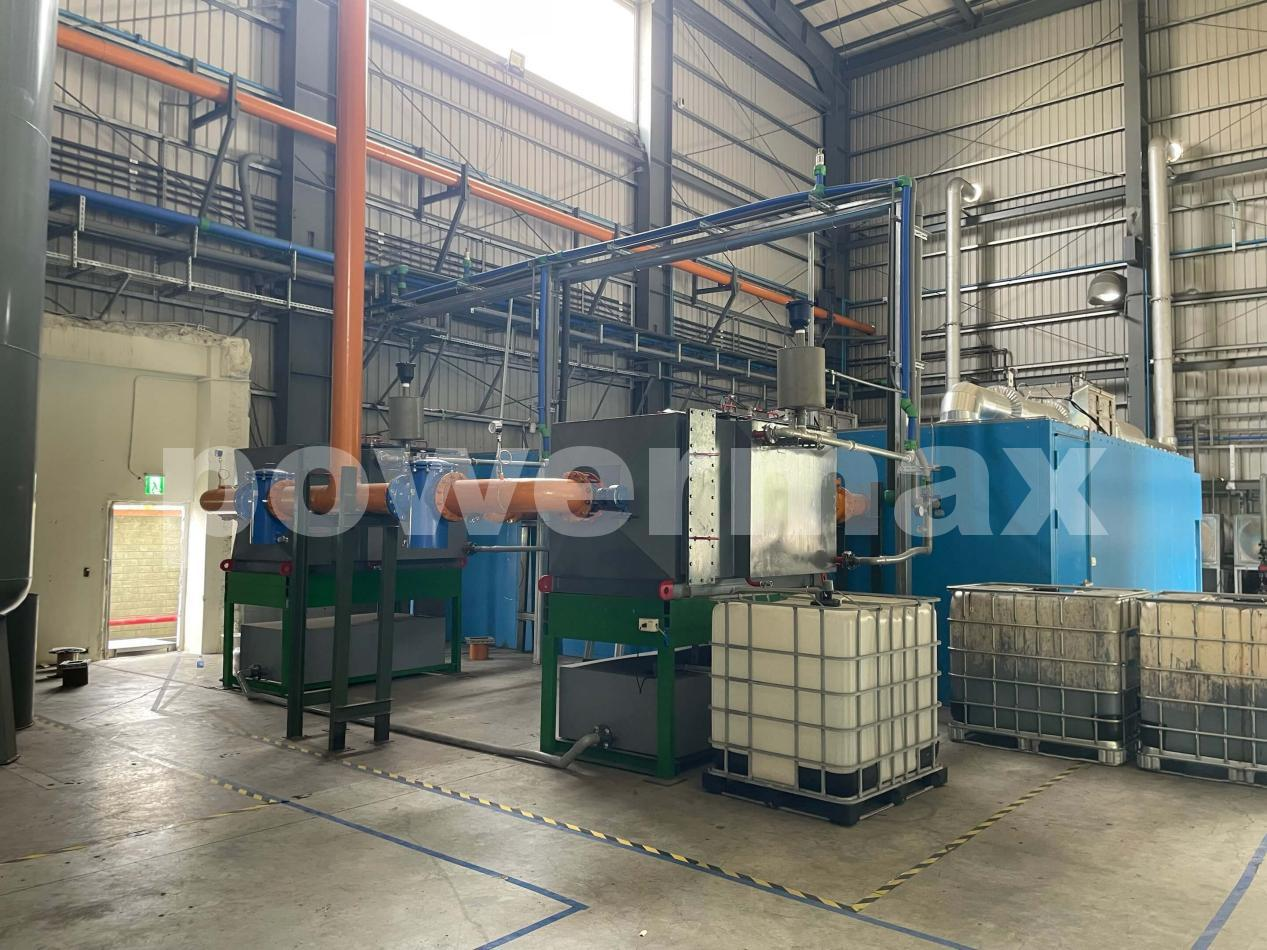

Stable electricity generation requires suitable fuel preparation and producer gas quality. The wood chips have a specified moisture content of ≤15%, and the gas cleaning system must control tar before the gas enters the engines.

Powermax Solution

Powermax supplied a biomass gasification power generation system that passed the customer's factory acceptance inspection. The configuration includes two 300 kW gas engine generator sets.

Project Results

During stable operation, actual power output reaches 500 kW. The cleaned gas has a temperature of 45°C, a tar content of 20 mg/Nm³, and a calorific value of 5 MJ/Nm³.

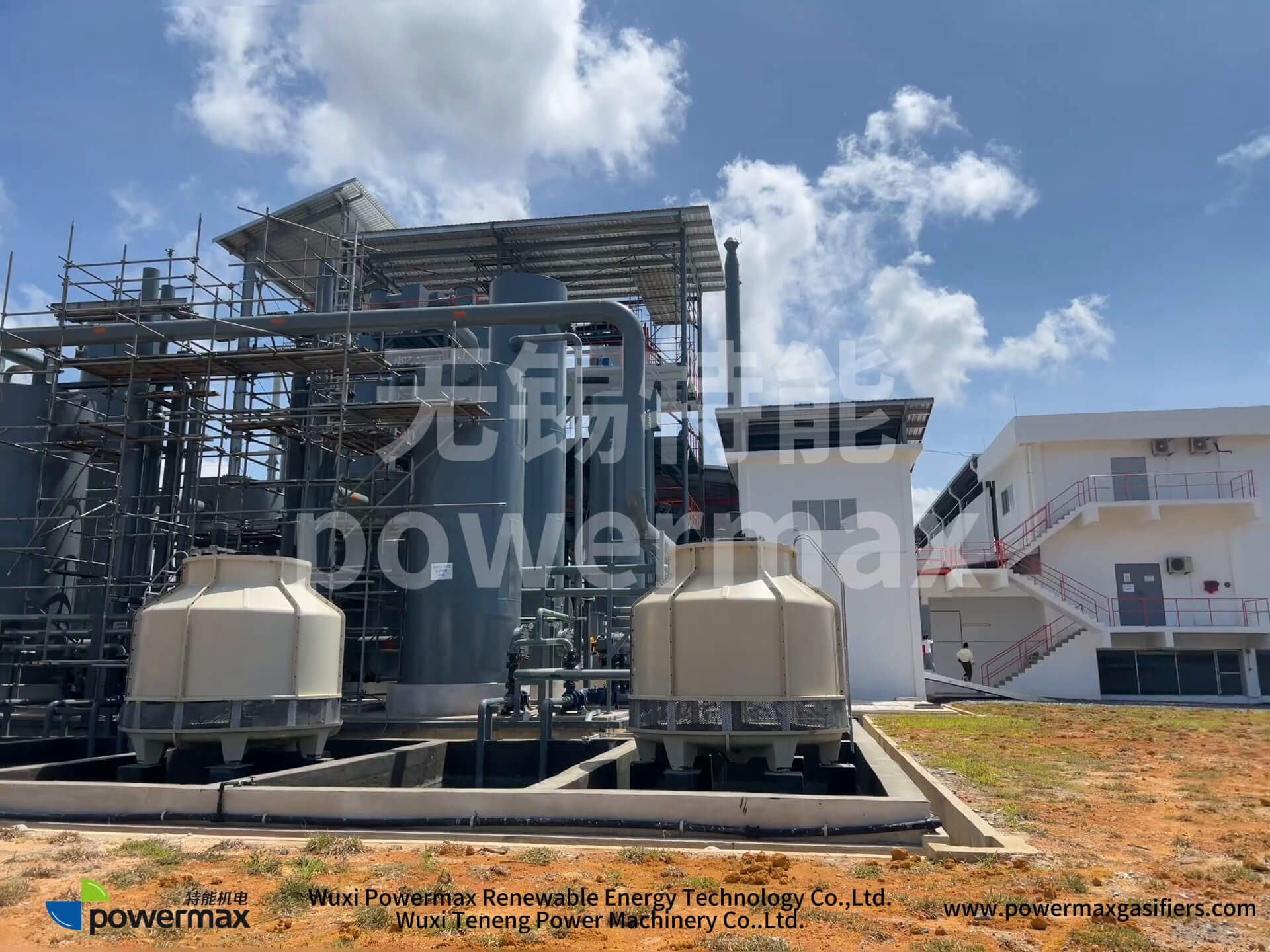

3 MW Wood Chip Gasification Power Plant in Malaysia

Project Background

MIE Industrial uses a 3 MW biomass gasification power plant to supply electricity to its wood pellet manufacturing facility in Malaysia.

Customer Pain Points

High electricity demand, rising grid electricity prices, and the need for reliable power made on-site generation attractive. The customer also wanted to reduce carbon emissions.

Powermax Solution

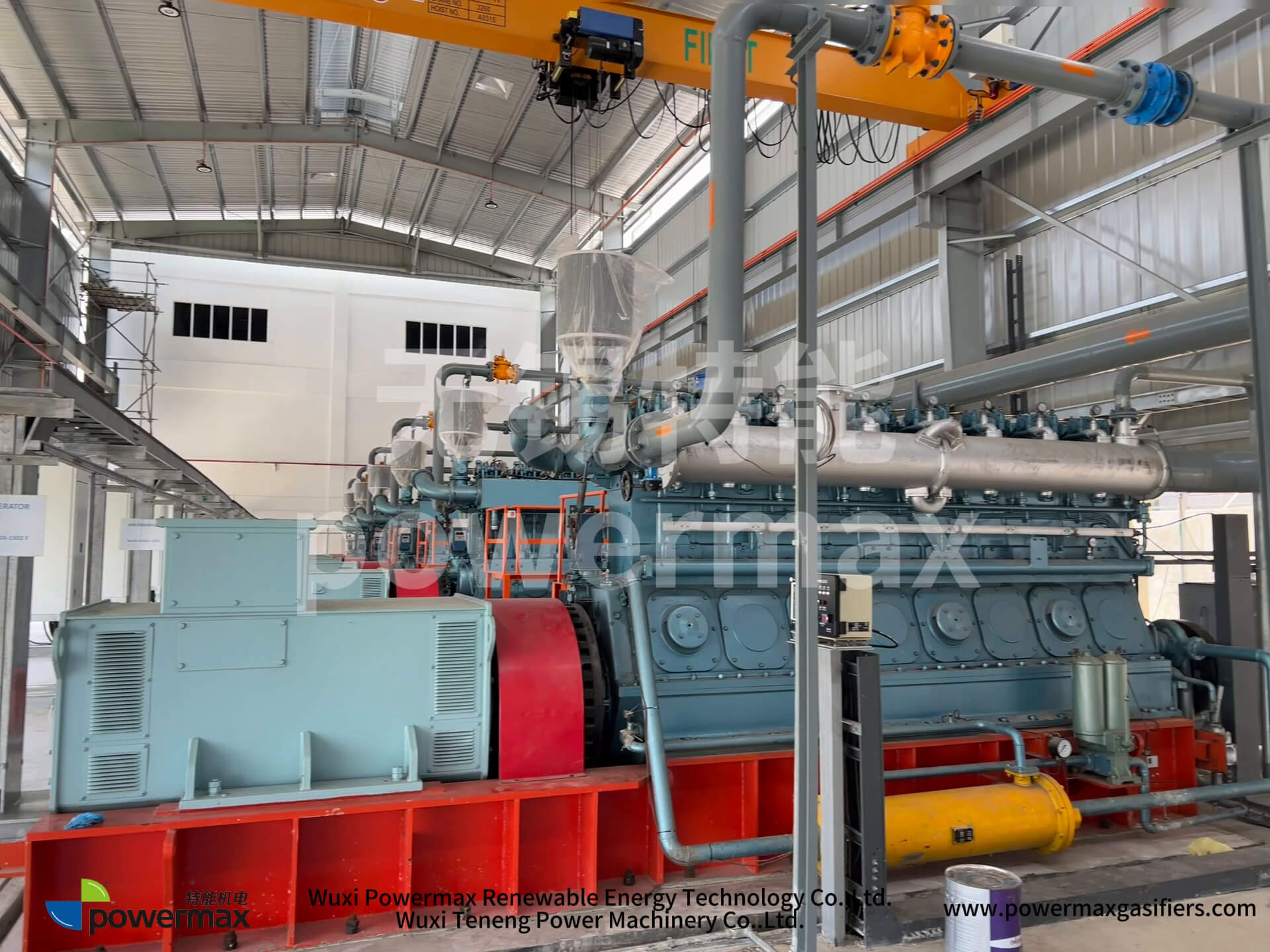

Powermax provided an integrated gasification power system with two TFBG1500 twin-fire fixed-bed gasifiers and six 500 kW gas engine generator sets. Wood-chip pretreatment helps control moisture, while a multi-stage gas cleaning system controls tar and protects the engines.

Project Results

The plant operates for more than 8,000 hours per year. Recovered engine heat supplies steam and hot water for other factory processes. Ash is also used for agricultural soil improvement.

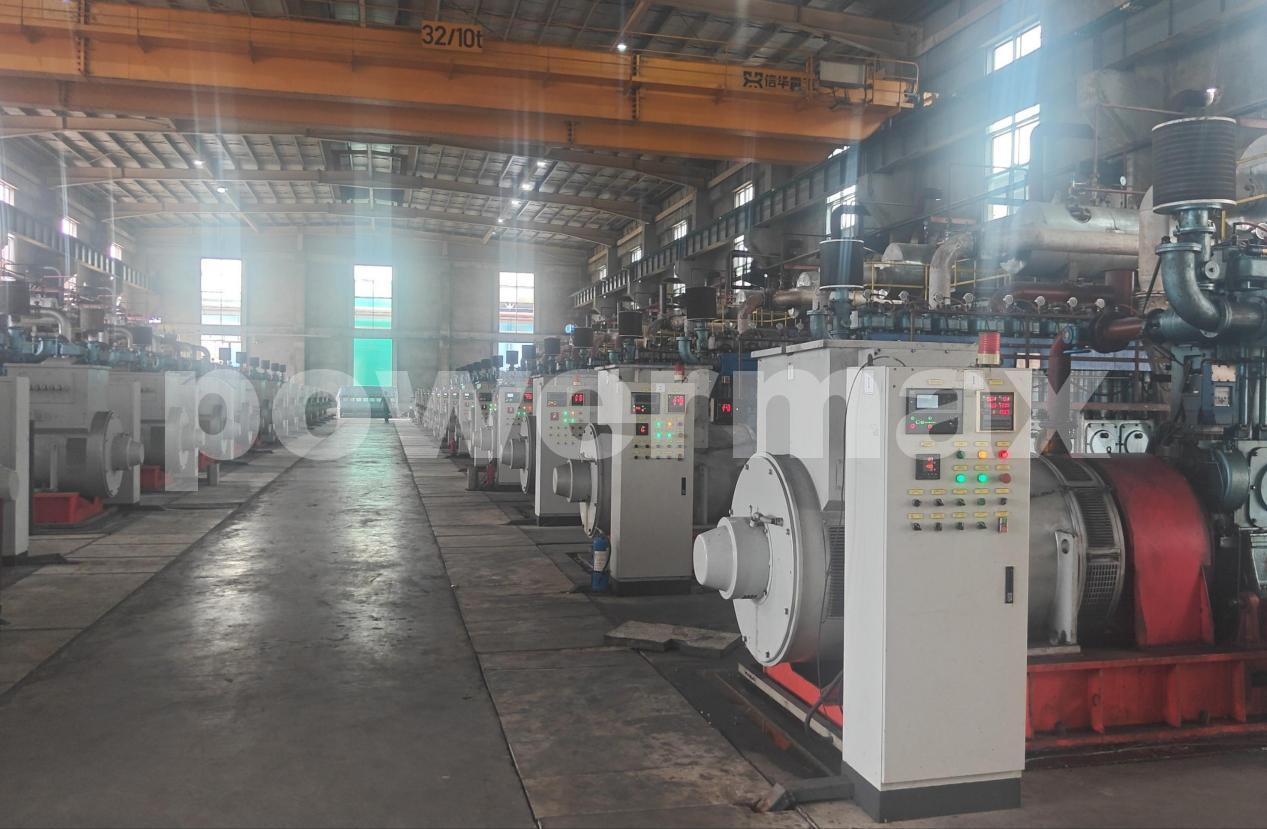

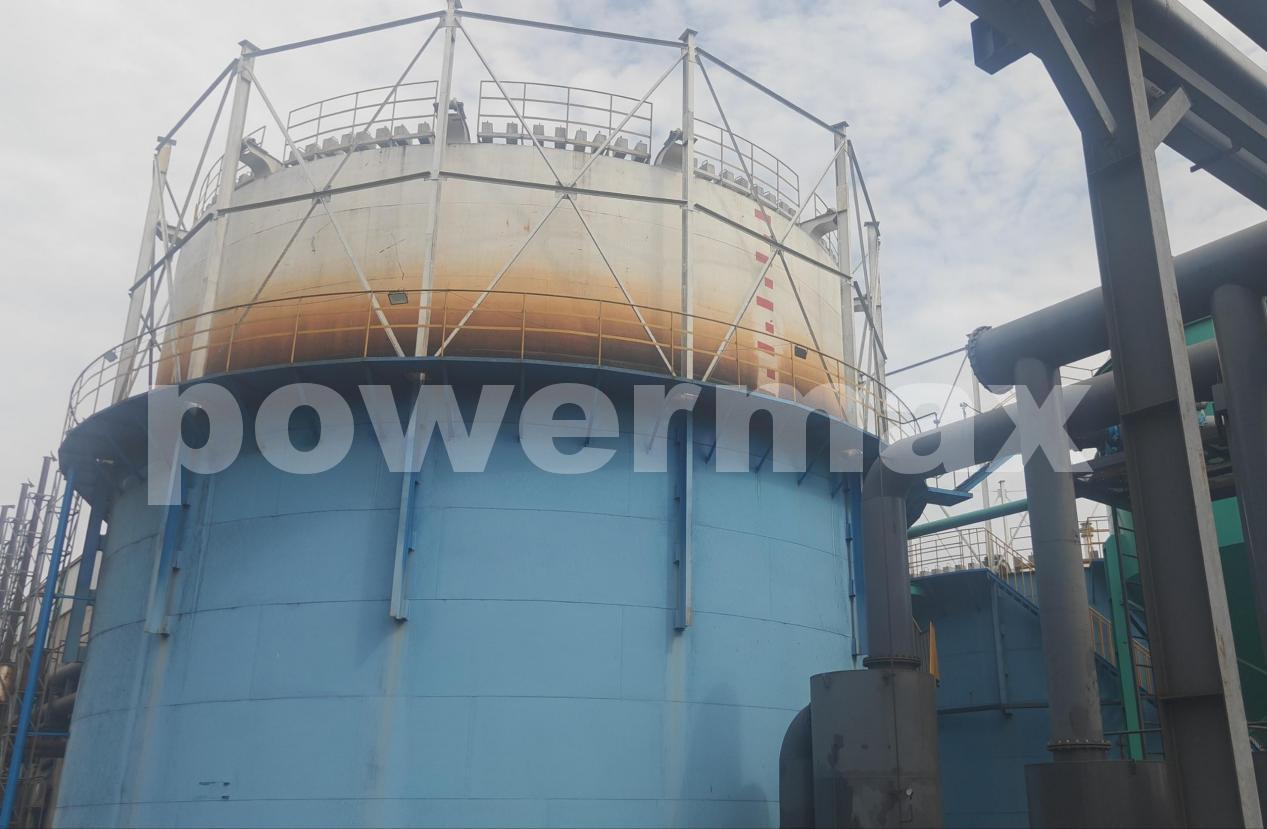

12 MW Rice Husk Gasification Power Project in Myanmar

Project Background

Located in Hpa Yar Chaung, Myanmar, this project uses rice husks to generate electricity for rice milling, feed production, and fish farming.

Customer Pain Points

In 2023, the local grid supplied electricity for only about two hours per day. Unreliable power affected industrial and agricultural operations, creating a need for a more dependable electricity supply.

Powermax Solution

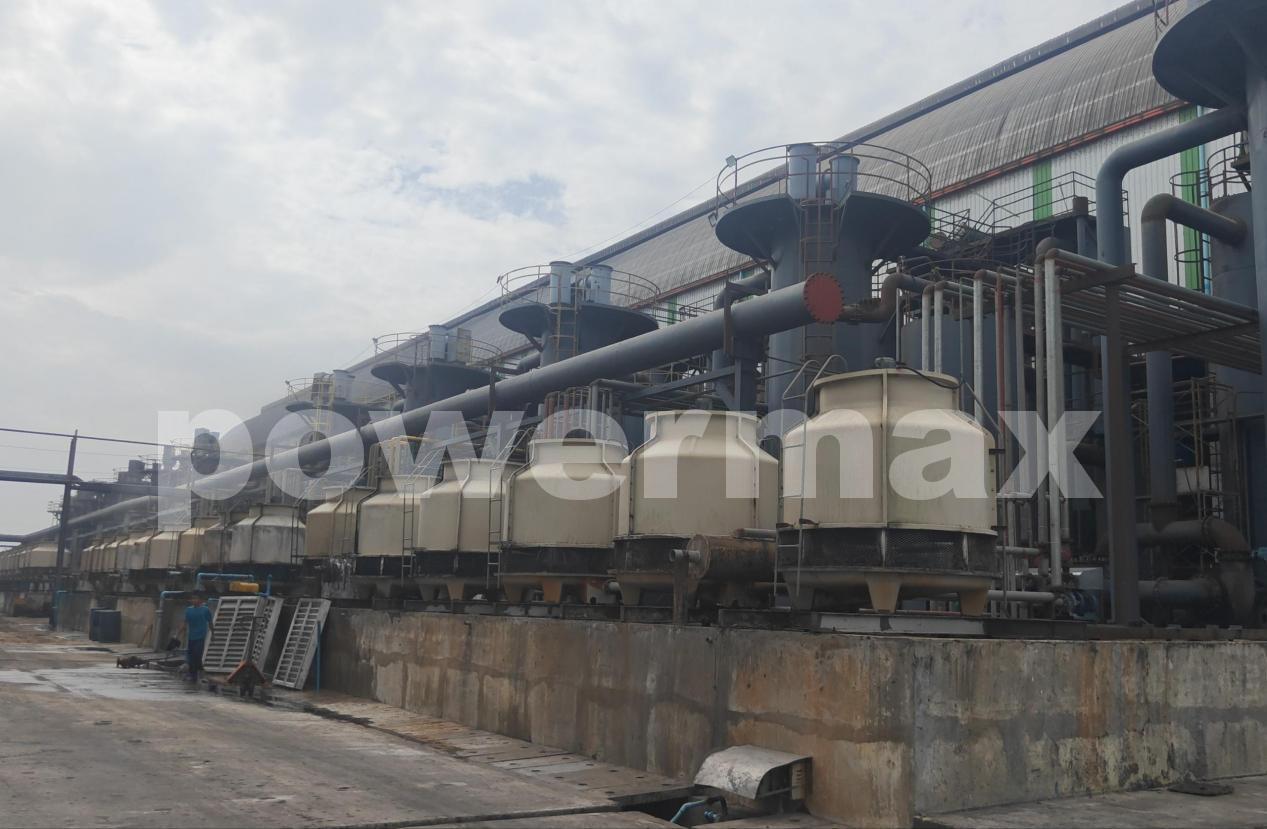

Powermax provided an integrated system with 12 rice-husk gasifiers, gas purification equipment, gas storage, and gas engine generator sets. A PLC control system manages plant operation, while heat recovery equipment supplies steam and hot water.

Project Results

Project records report an average operating time of 24 hours per day. Cleaned gas reaches 40–50°C, with a calorific value of 6.30 MJ/Nm³. Recovered heat supports other processes, and rice husk char can be returned to agricultural fields for soil improvement.

How Do You Choose the Right Biomass Power Plant System?

Choosing a biomass power plant starts with your available fuel, electricity demand, and site conditions. The right system must match your feedstock, power requirements, and operating needs.

Match the Technology to Your Feedstock

Check your biomass type, available quantity, moisture content, particle size, and ash content. These factors affect fuel preparation and system selection.

Direct combustion, gasification, and anaerobic digestion have different fuel requirements. Ask the supplier to confirm which technology can handle your feedstock and what pretreatment is needed.

For gasification projects, check the selected gasifier's fuel specifications. Moisture and particle size limits vary by model and feedstock, so avoid relying on general specifications alone.

Match Power Output to Your Needs

Define your required electrical capacity, daily operating hours, and expected power demand.

Decide whether you need grid-connected generation, off-grid power, or on-site electricity for your facility.

If you need a gasification system, make sure the gasifier, gas cleaning equipment, and gas engine generator are designed to work together. Their combined capacity must meet your power requirements.

Check Equipment Integration and Technical Support

Before choosing a supplier, confirm what the system includes. Key components may include fuel preparation, the gasifier or combustion equipment, gas or flue-gas treatment, the generator, and control systems.

Ask about installation, commissioning, spare parts, maintenance, and after-sales support. Review project references that use similar feedstocks and power configurations.

Choose a supplier that can explain how the system will handle your fuel, meet your power demand, and operate under your site's conditions.

Planning a biomass power generation project?

Powermax provides biomass gasification power generation systems for different feedstocks and project requirements.

To begin a technical assessment, prepare the following information:

Biomass type and available quantity

Moisture content and particle size, if known

Required electrical output in kW or MW

Expected daily operating hours

Grid-connected or off-grid requirements

Process heat demand, if applicable

Project location and development stage

Contact Powermax to discuss your biomass power generation project.
