Coal power plants remain an important source of electricity. However, burning coal releases greenhouse gases and air pollutants that harm the environment and public health (U.S. EIA). Research on 480 U.S. coal plants estimated that fine-particle pollution was associated with about 460,000 deaths between 1999 and 2020 (NIH).

As environmental requirements grow, operators are exploring alternatives. A coal gasification power plant converts coal into syngas, which is cleaned before power generation. However, an existing coal power plant cannot usually be converted through simple equipment replacement. This guide compares both systems and examines transition options, infrastructure reuse, and project feasibility.

What Is the Difference Between a Coal Power Plant and a Coal Gasification Power Plant?

A conventional coal power plant burns coal in a boiler to produce steam. The steam drives a turbine connected to an electrical generator. Flue-gas treatment equipment helps control pollutants produced during combustion.

A coal gasification power plant converts coal into combustible gas before power generation. The gas is cleaned and supplied to compatible generating equipment. In a modular coal gasification system, this equipment is typically a coal gas generator set. Some configurations also recover waste heat for steam or hot-water production.

Coal gasification can allow certain contaminants to be removed before the fuel gas is burned. However, it does not automatically eliminate air pollution or greenhouse gas emissions. Environmental performance depends on the complete system, operating conditions and emissions-control measures.

A modular coal gasification system should also be distinguished from an integrated gasification combined cycle (IGCC) plant. IGCC combines gasification, gas cleanup, a gas turbine, heat recovery and a steam turbine. It involves a different system architecture and should be assessed separately.

Can an Existing Coal Power Plant Be Converted to Coal Gasification?

A conventional coal power plant generally cannot be converted through a simple equipment replacement. The existing plant may have a boiler, steam turbine, condenser and auxiliary systems that are not directly compatible with a modular gasification system using coal gas generator sets.

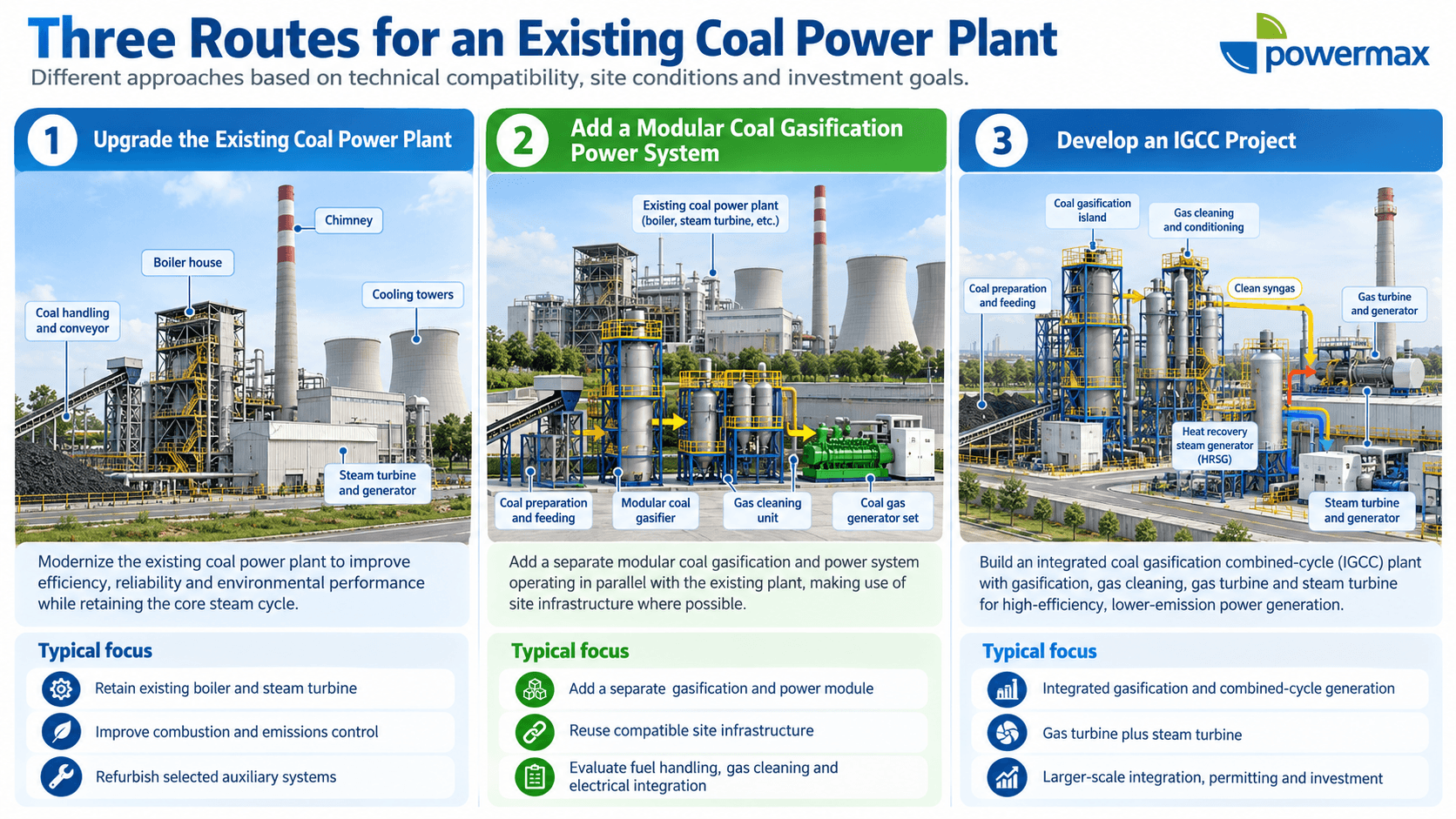

Three routes can be evaluated.

1. Upgrade the Existing Coal Power Plant

If the existing boiler, steam turbine and other major equipment remain serviceable, upgrading the current plant may be worth considering.

Potential improvements include combustion control, emissions treatment, instrumentation and selected equipment replacements.

This route improves the existing coal-fired system but does not convert it into a coal gasification power plant.

2. Add a Modular Coal Gasification Power System

A modular coal gasification power system may be evaluated as a separate source of electricity alongside an existing industrial facility or power plant.

Depending on site conditions, potentially reusable assets include:

Coal storage and handling facilities, if compatible with the selected gasifier.

Electrical substations, transformers and grid connections, subject to engineering checks.

Suitable site infrastructure, access roads and equipment foundations.

Selected utility systems and maintenance facilities.

An existing boiler and steam turbine should not be assumed to work directly with a coal gas generator set. The proposed system requires an assessment of fuel processing, gas cleaning, electrical integration, safety systems and environmental controls.

For projects seeking additional on-site power, this route may avoid replacing every part of the existing plant. The actual savings depend on which assets can be reused.

3. Develop an Integrated Gasification Combined Cycle Project

An IGCC project integrates coal gasification with gas-turbine and steam-turbine generation. It may be considered for larger, integrated power-generation developments.

However, IGCC involves complex system integration, significant capital requirements and project-specific operating risks. Construction costs, schedules, fuel characteristics and long-term reliability must be evaluated before selecting this route.

These three options are not interchangeable. The appropriate choice depends on the existing plant, required output, available fuel and investment objectives.

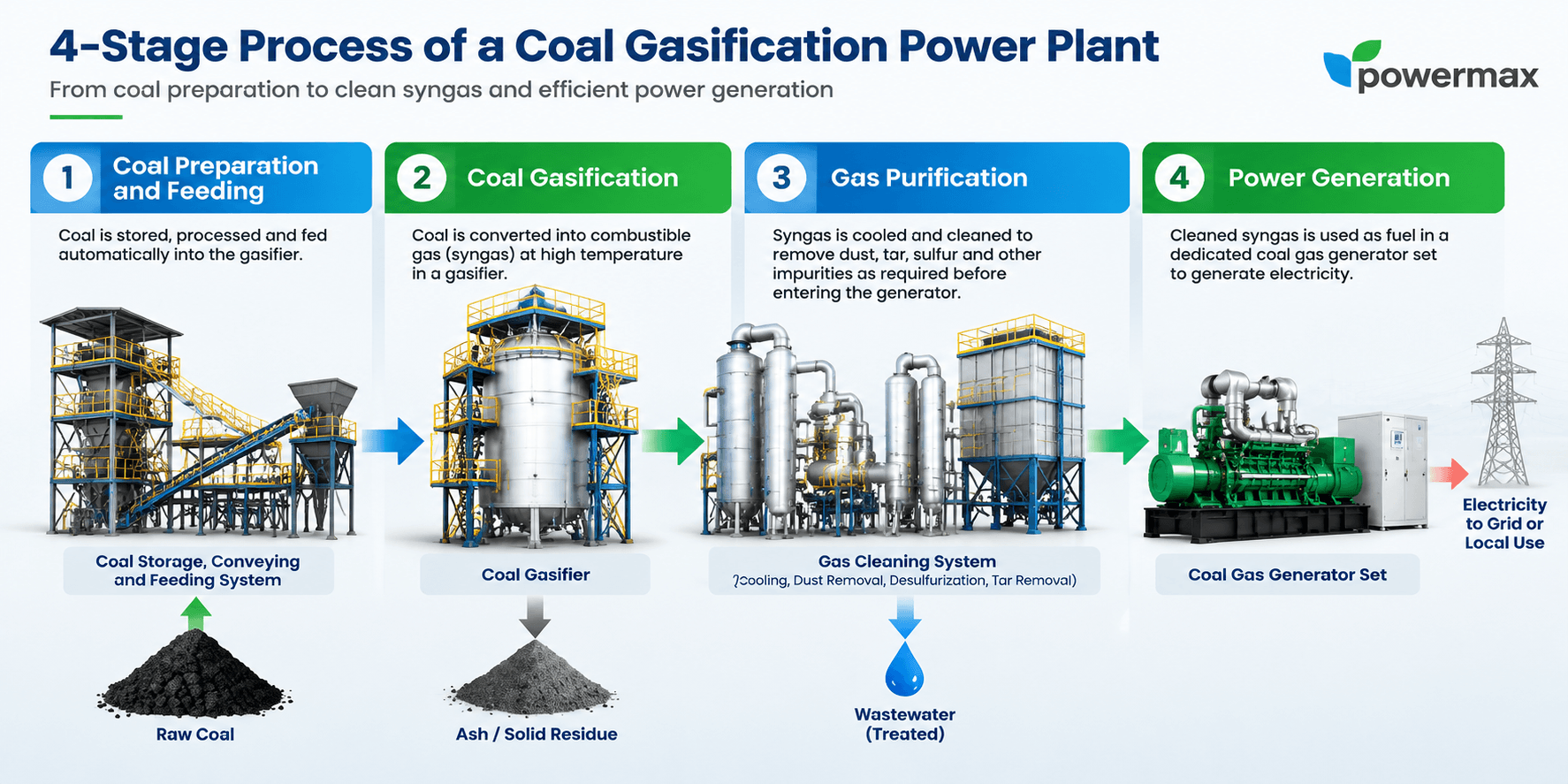

How Does Coal Gasification Power Generation Work?

A modular coal gasification power system follows four main stages. The process described in Powermax's coal gasification power generation system illustrates this gasifier-to-generator approach.

Stage 1: Coal Preparation and Feeding

Coal is stored, prepared and fed into the gasifier. Depending on the equipment, preparation may include screening, crushing or moisture control.

Particle size, moisture, ash content and heating value affect feeding stability and gasification performance. The feed system must be compatible with the selected coal and gasifier.

Stage 2: Coal Gasification

Inside the gasifier, coal reacts under controlled conditions with a gasifying agent such as air, oxygen or steam. This process produces a combustible gas commonly known as syngas.

The gas contains components such as carbon monoxide (CO) and hydrogen (H₂), along with other gases and impurities. Its composition and heating value depend on the coal properties and gasification process.

Stage 3: Coal Gas Purification

Raw coal gas may contain tar, dust, sulfur compounds and other contaminants. A suitable purification system reduces these impurities to levels appropriate for the downstream equipment.

The required treatment depends on the raw gas composition, coal characteristics and generator specifications. Exhaust emissions after combustion must also be assessed separately.

Gas quality is important because unsuitable fuel conditions can affect generator operation, maintenance requirements and equipment reliability.

Stage 4: Electricity Generation

After purification, the cleaned coal gas is supplied to a dedicated coal gas generator set. The gas engine converts the fuel's chemical energy into mechanical energy, and the generator converts that energy into electricity.

Where the project has a suitable heat demand, engine exhaust heat can be recovered through a waste-heat boiler to produce hot water or steam. This combined heat and power (CHP) arrangement may improve overall fuel utilization.

Electricity-only efficiency and total CHP efficiency are different metrics. Any performance comparison should use clearly defined system boundaries and operating conditions.

What Determines Coal Gasification Power Plant Feasibility and Cost?

The feasibility of a coal gasification power plant depends on coal quality, required net power output, existing infrastructure, environmental requirements, operating conditions, and project economics. Evaluating these factors together helps determine the appropriate system configuration, potential infrastructure reuse, and overall project scope.

1. Coal Quality and Coalwatt Gasifier Selection

Coal quality is a key factor in selecting a coal gasification system. Different coal types and fuel properties may require different gasifier configurations.

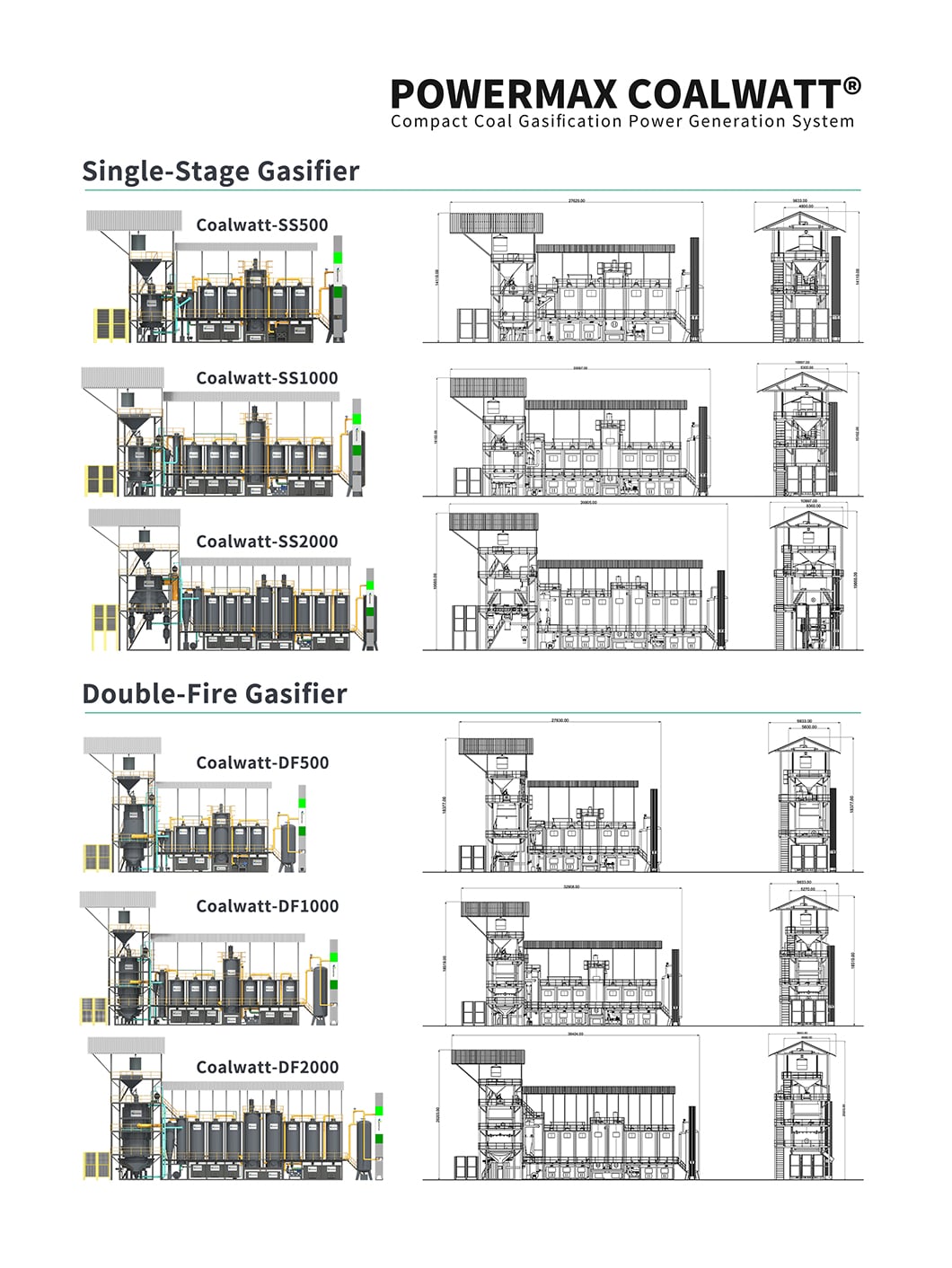

Powermax Coalwatt SS and DF series offer standard configurations for different coal types and rated power outputs. The SS series is designed for anthracite and coke, while the DF series is designed for bituminous coal, lignite, and brown coal.

Powermax published product specifications list the following standard configurations.

These models represent standard configurations, not a guarantee that every coal supply or site is suitable. Before selecting a model, we recommend evaluating a representative coal sample and reviewing the following properties.

A representative laboratory analysis is essential. Coal names alone are not sufficient to confirm compatibility. Final equipment selection should account for actual coal properties, gasifier requirements, downstream generator specifications, and site conditions.

2. Power Demand and Operating Profile

The required net power output and operating profile help determine the appropriate capacity and configuration of a coal gasification power plant.

Before selecting a system, establish:

Required net electrical output in kW or MW

Expected annual operating hours

Load variations and peak demand

Grid-connected or island-mode operation

Whether electricity-only generation or combined heat and power (CHP) is required

Annual net electricity generation can be estimated using the following formula:

Annual net generation = Net electrical capacity × 8,760 hours × Capacity factor

Use consistent units: capacity in MW gives annual generation in MWh, while capacity in kW gives annual generation in kWh.

The capacity factor should reflect realistic operating conditions, including planned maintenance, expected downtime, and variations in demand. Rated power alone does not determine annual electricity production.

3. Existing Infrastructure and Site Integration

When evaluating a coal gasification power plant for an existing industrial site or power station, some infrastructure may be reusable. However, each asset requires a technical assessment.

A modular coal gasification power plant may reduce some on-site construction requirements, depending on the project configuration. However, the overall scope must still account for foundations, coal feeding, gas purification, electrical integration, safety systems, environmental controls, installation, and commissioning.

Existing infrastructure should only be counted as a project saving after its compatibility and condition have been confirmed. In particular, a conventional coal-fired boiler and steam turbine should not be assumed to work directly with a modular coal gas generator set.

4. Environmental and Operating Requirements

Environmental compliance is an essential part of coal gasification power plant feasibility. Requirements vary by location, system configuration, fuel properties, and applicable permits.

A project assessment should consider:

Particulate matter, sulfur compounds, nitrogen oxides, and carbon monoxide

Greenhouse gas emissions, including carbon dioxide

Raw coal gas purification and engine exhaust treatment

Wastewater treatment, where applicable

Ash and other solid residue handling

Noise, workplace safety, and operating requirements

Coal gasification allows certain contaminants to be removed from the fuel gas before combustion. However, gas purification does not eliminate all pollutants or carbon dioxide emissions. The downstream generator still produces exhaust gases, and the complete system must meet applicable environmental requirements.

The assessment should also identify the treatment, monitoring, and disposal systems required at the project site. These requirements affect both capital expenditure and ongoing operating costs.

5. Coal Gasification Power Plant Cost and Project Economics

The cost of a coal gasification power plant depends on rated capacity, gasifier configuration, coal quality, gas purification requirements, generator selection, site conditions, installation scope, and local infrastructure.

For initial screening, our published product information provides the following reference figures for our modular coal gasification power systems.

These figures are indicative screening references, not guaranteed project costs or financial outcomes. Actual results depend on project-specific conditions. In particular, equipment pricing and total installed investment are different measures and should not be treated as interchangeable.

Utility-scale integrated gasification combined cycle (IGCC) projects also have published capital-cost estimates, including those from the U.S. Department of Energy's National Energy Technology Laboratory (NETL). These estimates use different plant scales and system boundaries from modular coal gasification systems using gas engine-generator sets. A meaningful comparison requires consistent assumptions about capacity, cost year, equipment scope, installation, and operating conditions.

What Costs Should a Coal Gasification Power Plant Feasibility Study Include?

A project budget should distinguish capital expenditure (CAPEX) from operating expenditure (OPEX).

Capital expenditure (CAPEX)

Gasifier and coal-feeding equipment

Coal gas purification equipment

Coal gas generator sets and electrical systems

Civil works, foundations, and site preparation

Installation, controls, safety systems, and commissioning

Grid connection and environmental infrastructure, where required

Operating expenditure (OPEX)

Coal purchase and transportation

Coal preparation and handling

Labor, routine maintenance, and replacement parts

Generator servicing and major overhauls

Auxiliary electricity, water, and consumables

Wastewater, ash, and residue management

Environmental monitoring and compliance

Annual fuel cost can be estimated as:

Annual coal cost = Hourly coal consumption × Delivered coal price × Annual operating hours

For this calculation, use coal consumption in tonnes per hour, coal price in US dollars per tonne, and operating hours per year. The result is the estimated annual coal cost in US dollars.

For a meaningful electricity-generation cost comparison, include annualized capital cost and relevant operating expenses, then divide the total by annual net electricity generation. State clearly which costs and any heat or by-product revenues are included.

A simple payback calculation is:

Payback period = Initial project investment ÷ Annual net savings

Annual net savings should be calculated against a clearly defined alternative and should account for relevant operating expenses. This formula is useful for preliminary screening, but it is not a complete financial model. Financing, equipment life, downtime, fuel-price changes, maintenance, and recovered-heat value can all affect the final result.

What Information Is Needed to Assess a Coal Gasification Power Plant Project?

Before comparing configurations or preparing a project-specific cost estimate, gather the following information.

Evaluate Your Coal Gasification Power Project

Share your existing power plant configuration, coal specifications, target generating capacity, and project location. Discuss whether a modular coal gasification system or another power generation configuration may be suitable for your site.
