The Energy Challenge: Reliable Industrial Power Supply
For remote mining operations, island communities, and industrial plants, reliable electricity is the foundation of growth. Traditional large-scale plants involve prohibitive costs and 18-24 month construction times. Meanwhile, intermittent renewables cannot guarantee the 24/7 baseload power required for critical operations. Industries need a dedicated captive power solution .
What if you could deploy a clean, efficient coal-fired power plant in under two weeks?
The Coalwatt® modular coal gasification power generation system makes this possible. Unlike massive IGCC plants of the past, this is a scalable, rapidly deployable solution designed for immediate power generation.
Why Choose Coalwatt®? Core Advantages for Global Markets
The Coalwatt® system is a compact platform engineered for modern demands. It transforms solid fuels (coal, biomass, waste) into clean syngas to generate electricity efficiently.
Rapid Deployment
Go from shipment to operation in 7-10 days. Our containerized frames minimize civil works, accelerating your CPP project timeline.
Environmental Performance
Achieve gasification efficiency ≥85% and reduce carbon emissions by ~30% vs. conventional burning. Lower SOx and NOx output.
Fuel Flexibility & Security
Utilize locally available low-grade coal, anthracite, or biomass. Reduce fuel cost and supply chain risk for your power plant.
Economic Efficiency
Lower CAPEX, automated operation, and cheap fuel translate to a highly competitive LCOE. This makes it the most cost-effective CPP alternative to diesel generators and grid dependency.
Modular Scalability
Start with a single 500kW coal gasifier module and expand on-demand to 1MW, 2MW, or beyond. Perfect for phased development.
Global Solution
Ideal for off-grid coal power generation, industrial captive power, and supplementing unreliable grids worldwide.
Technical Specifications: Engineered for Performance
Our coal gasification system comes in two main designs to match your fuel type and requirements. All systems are designed as complete coal gasification power generation systems ready for rapid integration.

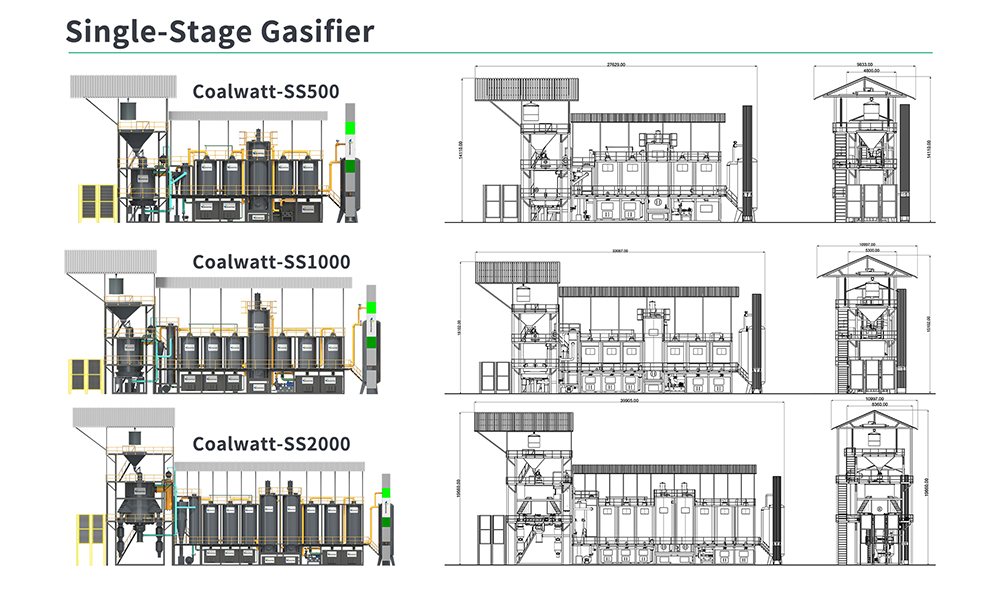

Single-Stage Gasifier System (For High-Grade Feedstock)
Ideal for anthracite coal or coke, offering high efficiency and operational simplicity.
|
Model |
Coalwatt-SS500 |
Coalwatt-SS1000 |
Coalwatt-SS2000 |
|
Rated Power |
500 kW | 1000 kW | 2000 kW |
|
Application |
Small communities, farms | Medium factories, mines | Industrial parks, utilities |
|
Coal Consumption |
270-310 Kg/h | 540-620 Kg/h | 1080-1240 Kg/h |
|
Gas Output |
900-1100 Nm³/h | 1800-2200 Nm³/h | 3600-4400 Nm³/h |
|
Primary Fuel |
Anthracite Coal, Coke |
||
|
Footprint |
280 m² | 374 m² | 440 m² |

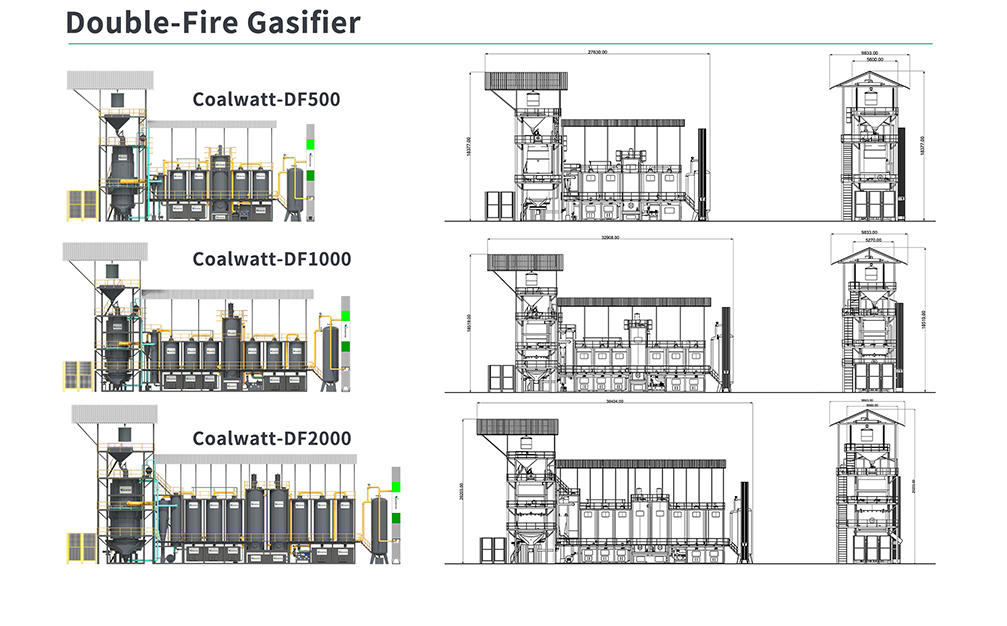

Double-Fire Gasifier System (For Maximum Fuel Flexibility)
Our most popular system, designed to handle a wide spectrum of low-grade coals and biomass—perfect for small scale coal power plants in resource-diverse regions.
|
Model |
Coalwatt-DF500 |
Coalwatt-DF1000 |
Coalwatt-DF2000 |
|
Rated Power |
500 kW | 1000 kW | 2000 kW |
|
Application |
Small communities, farms | Medium factories/mines | Large industrial parks |
|
Coal Consumption |
270-310 Kg/h | 540-680 Kg/h | 1080-1360 Kg/h |
|
Gas Output |
900-1200 Nm³/h | 1800-2400 Nm³/h | 3600-4800 Nm³/h |
|
Primary Fuel |
Meager, Lean, Bituminous, Brown Coal, Biomass | ||
|
Footprint |
280 m² | 330 m² | 390 m² |
Note: Specifications based on 24/7 operation; data may vary by specific fuel type and conditions. All systems include integrated coal gas generators and automation controls.
Scalable Project Configurations: From 2MW to 20MW+
Our modular coal gasification power generation system allows for limitless scaling. Configure your mini coal power plant or utility-scale installation from standardized modules.

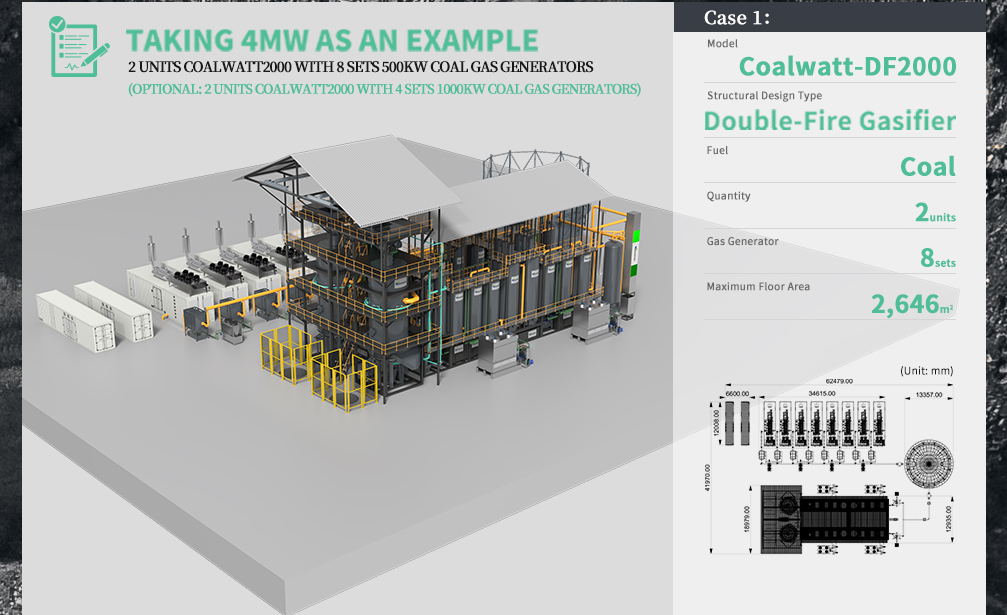

Case 1: 4MW Power Plant for Mining Operation
Typical ROI: 3-4 yearsA mid-sized mining operation in a remote location needed reliable off-grid power. Traditional diesel gensets were too expensive to operate.
| Configuration | Deployment Time | Fuel | Footprint |
|
2 x Coalwatt-DF2000 + 8 x 500kW gensets |
12 days from delivery | Local low-grade coal | ~2,646 m² |

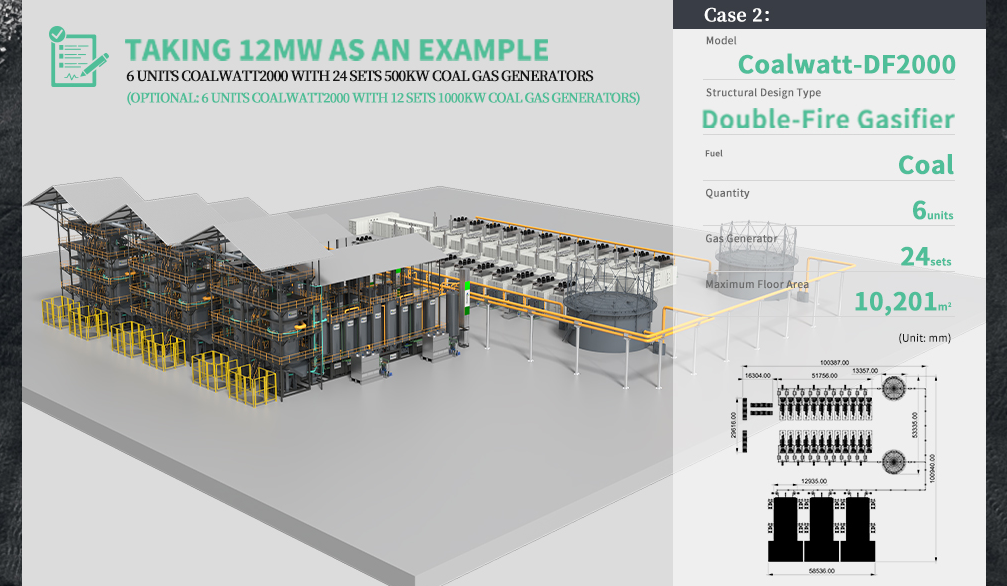

2. Industrial Captive Power Plants (CPP)
Need: Energy-intensive industries (Cement, Chemical, Steel) require stable, low-cost electricity to remain competitive. Grid instability causes downtime.
Our Solution: A dedicated Coal Gasification CPP provides energy independence. Unlike traditional thermal plants, our modular CPP allows industries to generate their own power on-site using affordable local coal, reducing OPEX by 30-50% compared to grid tariffs.
| Configuration | Deployment Time | Annual Savings | Footprint |
|
6 x Coalwatt-DF2000 + 24 x 500kW gensets |
4 weeks (phased) | $1.2M vs. grid power | ~10,201 m² |

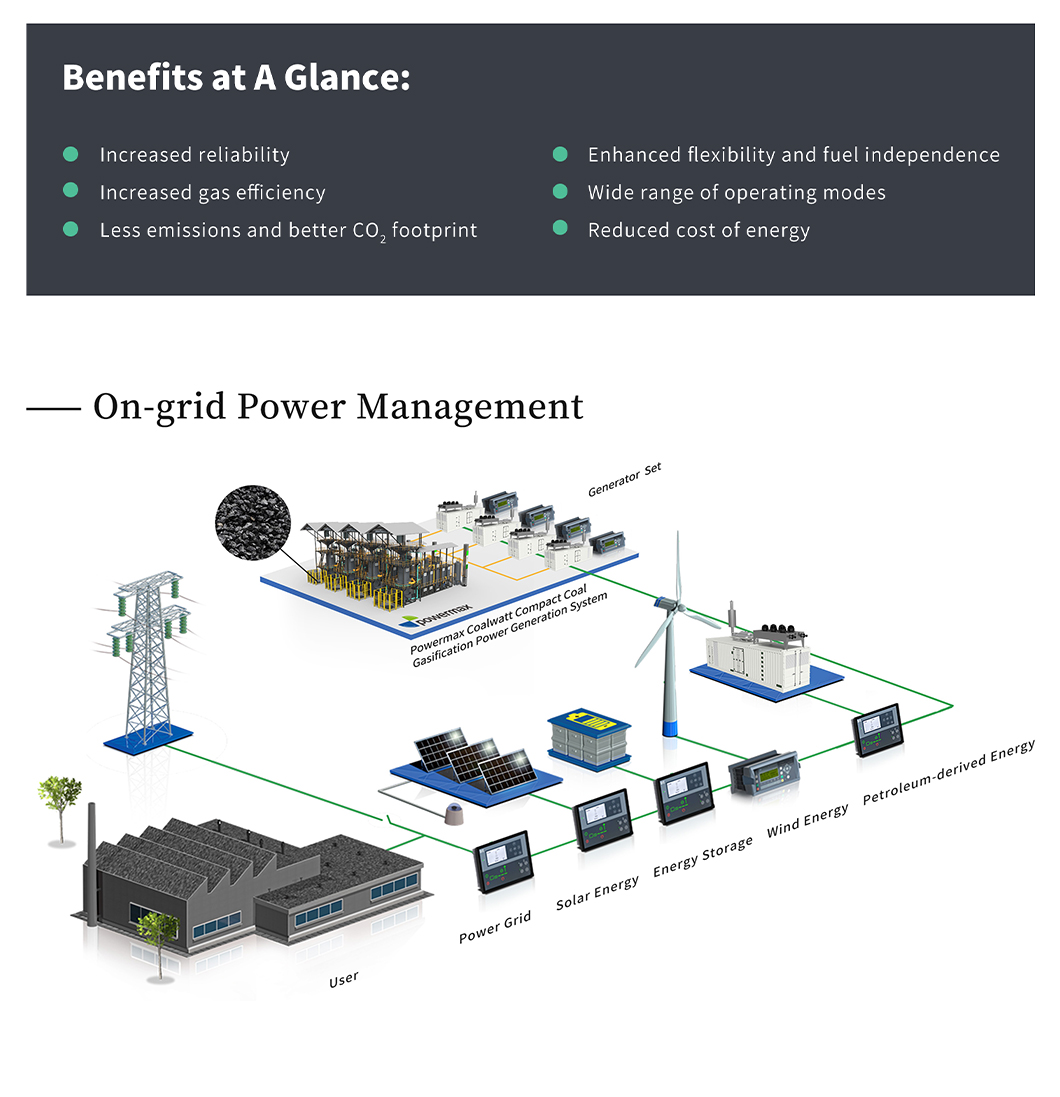

Integrated Hybrid Power Solutions
The Coalwatt system excels as the reliable backbone of a sophisticated hybrid microgrid, combining the best of coal gasification power generation with renewables.
For Off-Grid Applications
Our Energy Management System (EMS) intelligently orchestrates power between coal gas gensets, solar PV, wind turbines, biomass gasifiers, and battery storage. When renewables are insufficient, the gasifiers provide instant, stable power. This results in >99% reliability with minimized diesel backup.
For On-Grid Applications
Provide critical grid stability and peak shaving. During monsoon seasons or prolonged cloud cover when solar output falters, the coal gasification power plant can ramp up seamlessly to fill the gap.
Hybrid System Benefits
- Increased Reliability & Fuel Independence
- Higher Overall System Efficiency
- Reduced Emissions & Improved Carbon Footprint
- Wide Range of Operating Modes
- Lower Levelized Cost of Energy (LCOE)
Key Markets & Applications
1. Power Utilities & Energy Developers
Need: Grid stability, peak load management, and rapid capacity expansion without multi-year construction.
Our Solution: Modular coal gasification plants that can be installed in weeks to support or defer expensive grid upgrades. Ideal for small-scale coal power additions in regional grids.
2. Heavy Industry (Mining, Chemical, Cement)
Need: 24/7 reliable heat and power (CHP) in often remote, off-grid locations.
Our Solution: A resilient on-site captive power plant that can run on low-grade fuel, slashing energy costs by up to 25% and securing operations against grid failures.
3. Coal Producers & Resource Owners
Need: To monetize coal reserves or low-grade coal stockpiles beyond traditional sales channels.
Our Solution: Transform raw material into high-value exported electricity using transportable modular gasification units—essentially a coal to power value-added solution.
4. Governments & Development Agencies
Need: To electrify remote regions, replace aging inefficient plants, and achieve UN Sustainable Development Goal 7 quickly.
Our Solution: A fast-deployable, lower-emission alternative to traditional coal-fired power plants that fosters economic development.
Frequently Asked Questions
Q1: What is the typical cost of a coal gasification power plant?
The coal gasification plant cost varies based on capacity and configuration. However, our modular systems typically offer 30-50% lower capital expenditure (CAPEX) than traditional plants of similar capacity. A 1MW system generally ranges between $1.2M-$1.8M fully installed. Contact us for a specific quote tailored to your local fuel costs.
Q2: How does compact coal gasification differ from traditional coal power?
Traditional plants burn coal directly to make steam (Rankine cycle), which is inefficient at small scales. Compact coal gasification converts coal into combustible syngas first, which then fuels high-efficiency internal combustion engines. This "Gas-to-Power" process results in higher electrical efficiency and enables the modular, containerized design.
Q3: Can your coal gas generator run on biomass as well?
Yes. Our Double-Fire Gasifier systems are designed for ultimate fuel flexibility. They can operate on 100% coal, 100% biomass, or any blend of both. This allows you to switch fuels based on seasonal availability and market prices.
Q4: What are the advantages of modular gasification for off-grid power?
- Speed: Deploy in weeks, not years.
- Scalability: Start with 2MW and expand to 10MW as your mining or industrial operations grow.
- Mobility: Containerized modules can be relocated, protecting your investment if the mine closes or the site moves.
Q5: How does Coalwatt compare to diesel generators?
While diesel gensets are cheap to buy, they are expensive to run. Coalwatt systems typically reduce operating costs (OPEX) by 40-60% compared to diesel. For 24/7 operations, the fuel savings usually pay for the entire gasification system in just 2-3 years.
Ready to Transform Your Power Infrastructure?
Whether you need a mini coal power plant for an off-grid mine or a modular gasification system to cut industrial energy costs, we have the proven solution.
